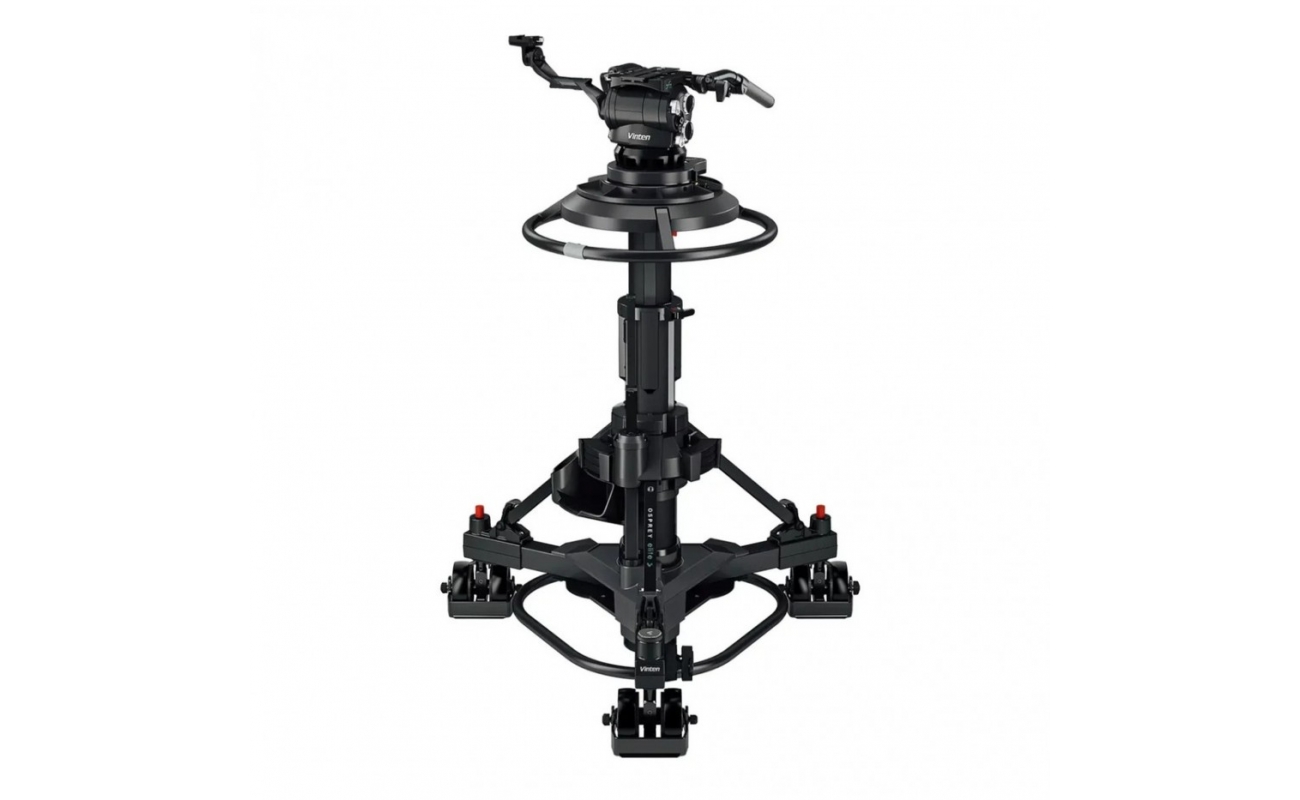

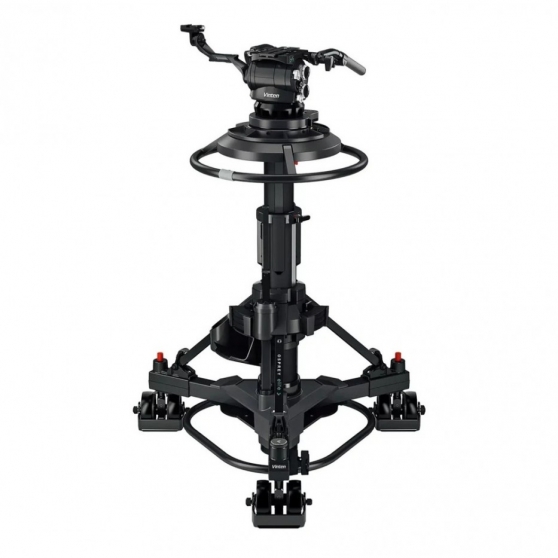

Versine 360 Osprey Elite S - EFP Studio Pedestal Kit with 2-Stage Elevation Column - Fluid Head with Quickfix Adapter

Condition : New product

The Versine 360 Osprey Elite S Studio Pedestal Kit (VB360-OES) is designed for TV studios seeking expert maneuverability, perfect tracking, and high load capacity. Thanks to its 2-stage elevating column, the system allows for smooth vertical transitions from seated to standing presenter positions without losing the on-shot frame.
Its ultra-stable mobile base and crab & steer modes provide precise and silent horizontal movements. Paired with the Versine 360 fluid head, it is a premium solution for daily productions, talk shows, entertainment, and multi-camera broadcasts.

Highlights of the Versine 360 Osprey Elite S Studio Pedestal Kit

40 kg Payload: Complete studio cameras + prompters + large format viewfinders
Continuous Perfect Balance: Smooth and precise positioning across the entire tilt range for effortless control
TF Drag Technology: Ultra-smooth control at varying speeds for precise framing and instant response
77 cm Elevation Travel: Seated/standing tracking without reframing
Crab & steer: Perfect for on-shot* direction changes in tight spaces
Dual Wheels Ø 12.5 cm with braking without wheel deformation (fluid rollability after immobilization)
Simple Assembly: Detachable skid for transport in 2 parts
Integrated Quickfix & Pressure Gauge: Quick setup and immediate calibration

Technical Specifications of the VB360-OES Kit

Kit Reference: VB360-OES
Composition: Versine 360 Fluid Head + Osprey Elite S + dual wheels + Quickfix + cable guards
Total Payload: up to 40 kg
Max System Height: 162.5 cm
Min Height: 85.5 cm
Vertical Travel: 77 cm
Tracking Width: 97 cm
Transit Width: 80 cm
Number of Stages: 2 with Perfect Balance 2-stage
Steering Wheel Diameter: 53.3 cm
Complete Kit Weight: 53.7 kg

Versine 360 Fluid Head Specifications

Payload: 0 to 40 kg
Base: Versine multistandard base compatible with Flat base, Quickfix, and 150/100 mm bowl
Counterbalance: Continuous and perfect
Friction System (Drag): TF30, with TF Drag technology for maximum control at low speed and instant whip pan
Dimensions: H19.5 x L15.1 x W19.4 cm
Weight (head only): 6.3 kg
Camera Mounting: Vision sliding plate with locking lever
Tilt Range: +90° / -90°
Platform Slide Range: 125 mm
Bubble Level: Illuminated and high contrast
Drag & Balance Controls: Backlit and calibrated
Temperature Range: Designed to operate from -40°C to +60°C
Central Lock: Stainless steel push button
Pan Bar: Single, telescopic, broadcast type
Unique Flexibility: Compatible with the Versine Arm, an accessory arm for fluid heads designed for side-mounting accessories

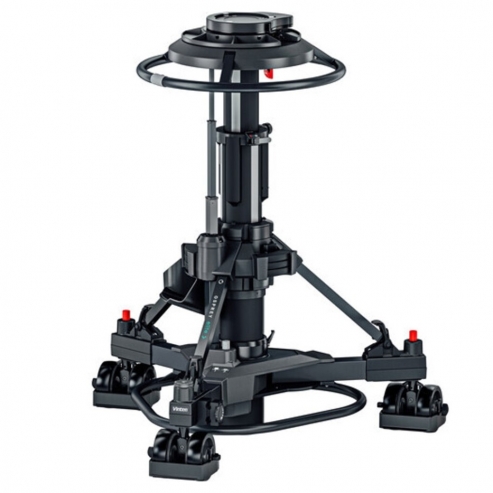

Osprey Elite S Pedestal Specifications

Pedestal Reference: V4172-0001
Payload: 80 kg
Studio wheels
Elevation Height Range: 66 to 143 cm
Weight: 50.5 kg
Delivered with Quickfix adapter, Kick ring, Accessory holder, Hand pump
