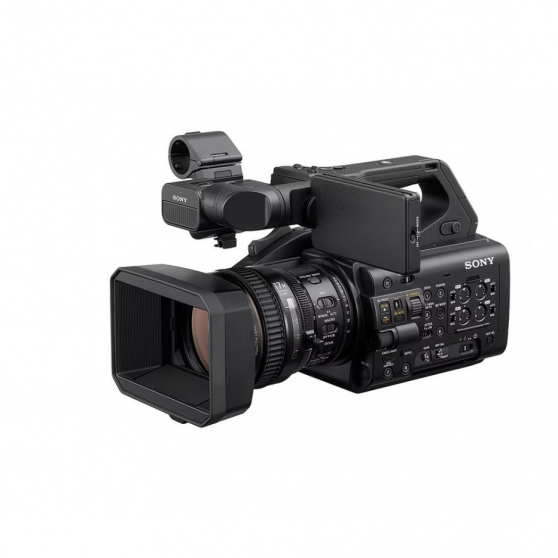

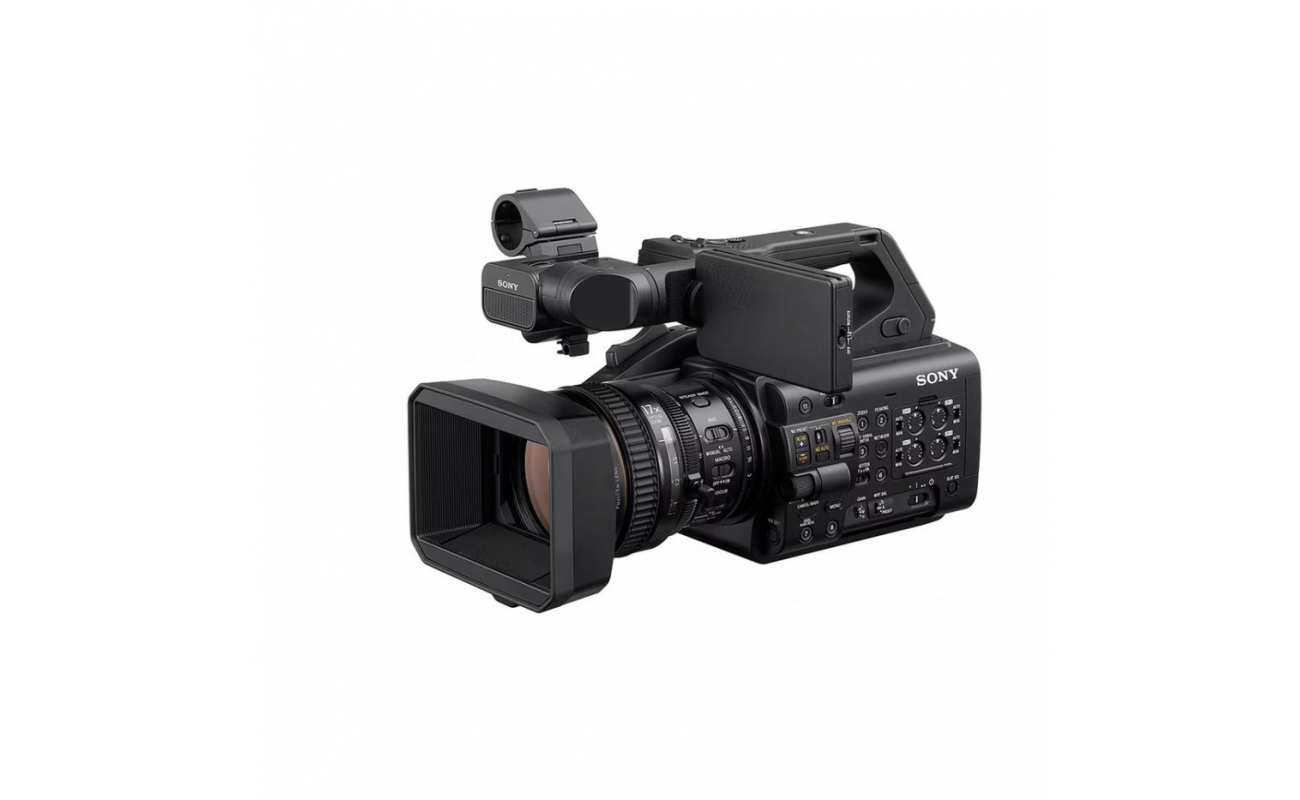

PXW-Z300 - XDCAM 4K 3 CMOS Exmor R 1/2" Handheld Camcorder - AI Autofocus
New product
The Sony PXW-Z300 is a flagship XDCAM handheld camcorder, succeeding the Z280 and Z200 models. It features three 1/2″ CMOS Exmor R sensors for 4K capture and integrates the powerful BIONZ XR processor. Ideal for broadcast production and field reporting (ENG), it delivers crisp images with low noise even in low-light conditions.
The AI Subject Recognition autofocus revolutionizes automatic subject tracking capabilities. Its professional ergonomics and expanded network connectivity, including RTMP/SRT streaming, significantly speed up workflows.
Key Features of the Sony PXW-Z300 XDCAM 4K Camcorder
- Sensor: Three 1/2″ CMOS Exmor R sensors for superior image quality
- AI Focus: AI autofocus with subject recognition for ultra-fast and reliable automatic tracking
- Integrated 17x Lens: 17x optical zoom (35mm equivalent: 30.3 to 515 mm) with optical stabilization (Lens Shift)
- ND Filter: Electronic Linear Variable ND Filter (from 1/4ND to 1/128ND)
- Network Connectivity: Integrated RTMP and SRT streaming for cloud FTP transfer and live broadcasting
- SDI/HDMI Video Outputs: Advanced connectivity with professional 12G-SDI, 6G-SDI, 3G-SDI, and HDMI outputs
- Audio: 4-channel LPCM audio recording (48 kHz, 24-bit) with two professional XLR inputs
- Monitoring: Flexible and rotatable 3.5" touchscreen LCD monitor
- Media Support: Dual slot (SLOT A and SLOT B) for CFexpress Type A cards and SD UHS-I/II memory cards
Technical Specifications
- Sensor : Three 1/2″ CMOS Exmor R sensors
- Number of Pixels: Approx. 8.3 megapixels
- Zoom Ratio: 17x
- Focal Length (Actual): f=5.6 to 95.2 mm
- Focal Length (35mm Equivalent): 30.3 to 515 mm
- Diaphragm (Maximum Apertures): F1.9
- Minimum Illumination: 0.0013 lx (typical, high sensitivity mode)
- Shutter Speed (Electronic Shutter): Movies: 64 F to 1/8000 s
- Gain: -3 to 18 dB (in 1 dB steps), 42 dB (Turbo Gain activated)
- Image Stabilizer (Type): Lens Shift mechanism
- Recording Formats (Video): XAVC Intra / XAVC Long (MPEG-4 AVC/H.264), MPEG HD422 (MPEG-2 Long GOP)
- Recording System (Audio): 4-channel LPCM (48 kHz, 24-bit)
- Focus Type: Automatic focus with contrast detection
- Digital Extender: Approx. 1.5x (4K), Approx. 4x (HD)
- SDI Output: BNC, 12G-SDI, 6G-SDI, 3G-SDI (Level A/B), HD-SDI
- HDMI Output: HDMI® connector (Type A)
- Audio Input: 3.5 mm stereo mini-jack, XLR 3-pin (female) x2 with digital audio interface
- Wired LAN: 1000BASE-T, 100BASE-TX, 10BASE-T
- Streaming Protocols: RTMP, RTMPS, SRT
- TC/UB and Genlock: Switchable between BNC, TC In/Out and Genlock In/REF Out
- USB Terminal: USB Type-C port (SuperSpeed USB 5 Gbps and USB Power Delivery 20 V/5 A compatible)
- Wireless LAN Technology: Wi-Fi compatible, IEEE 802.11a/b/g/n/ac (2.4 GHz band / 5 GHz band)
- Recording Media: Dual multi-slot for SD memory card (UHS-I/II) or CFexpress Type A card
- Weight (Main Body Only): Approx. 2.6 kg
- Battery Life (Normal Shooting): Approx. 80 min (with BP-U35, normal power consumption)
- Compatible Battery: BP-U35, U70, U100
Information
| Warranty | Sony warranty |
| Delivery | Worldwide delivery possibilities |
