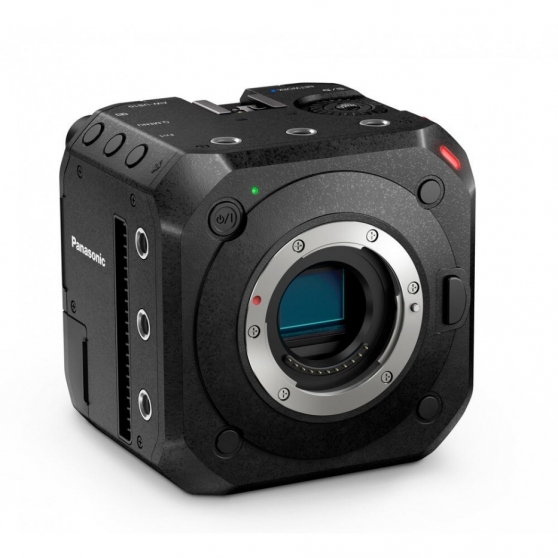

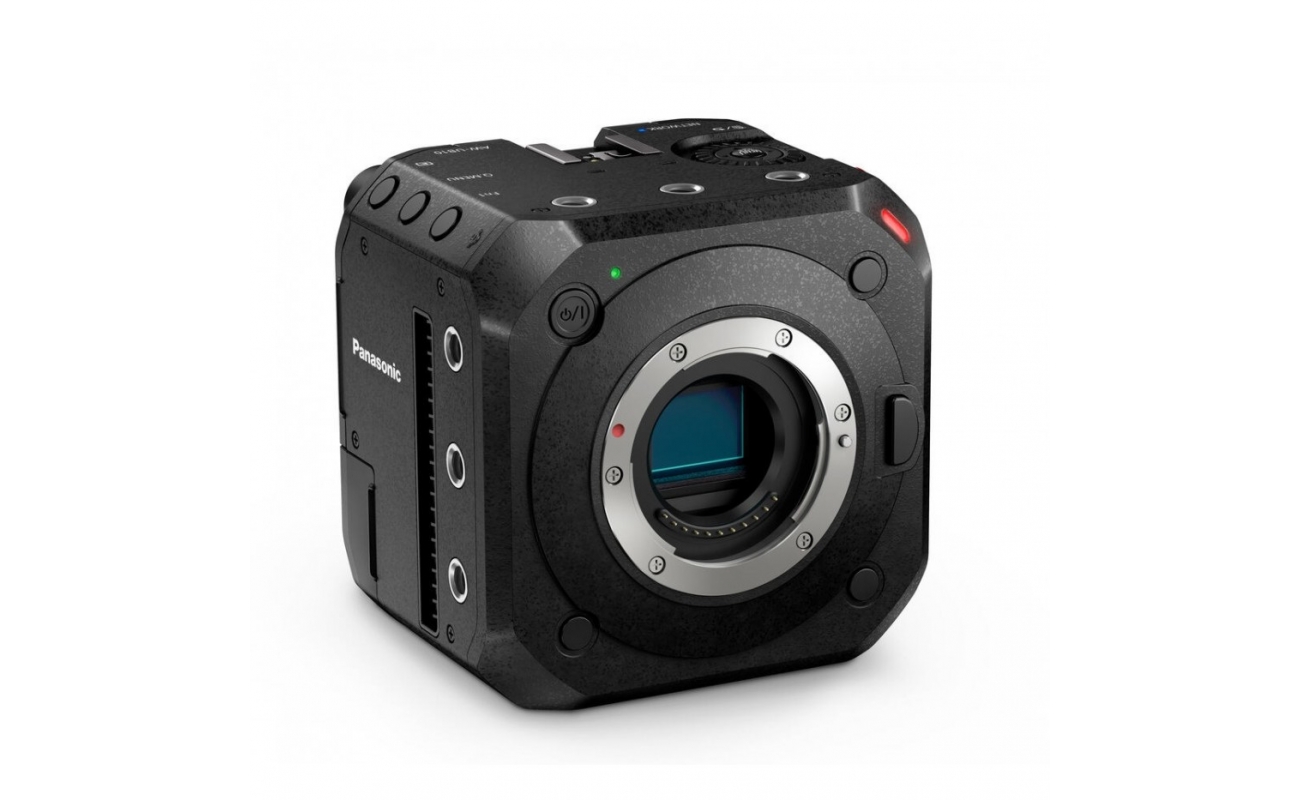

Panasonic AW-UB10 — 4K MOS Micro Micro 4/3 Box Camera with Interchangeable Lens — Cinema & IP Broadcast Production
New product
The Panasonic AW-UB10 is an ultra-compact 4K box-type camera, designed for broadcast and cinematic applications.
Equipped with a 10.3 Mpx 4/3 MOS sensor, it offers a 13-stop dynamic range thanks to V-Log mode.
Its architecture makes it the perfect solution for restricted environments (drones, stabilizers...) while seamlessly integrating into any Panasonic PTZ multi-camera system, ensuring a simplified IP workflow through PoE+ and NDI HX2 connectivity.
Key Features of the Panasonic AW-UB10 POV Camera
- Cinematic Rendering: 10.2 MP 4/3 MOS sensor and V-Log capture mode (13 stops) allowing for shallow depth of field
- Micro 4/3" Mount (PL compatible): access to a vast range of compact M4/3 interchangeable lenses and adaptability to PL cinema optics (via adapter)
- Native PTZ Integration: Common IP control protocols for PTZ integration with other Panasonic cameras, facilitating remote management
- Comprehensive IP Connectivity: Support for NDI HX2, RTMPS, and SRT standards for live-streaming and network interoperability
- High-Precision Real-Time Autofocus: Face recognition for real-time autofocus and precise tracking of moving subjects
- Ultra-Compact Modular Design: Box format, simplifying installation in various locations and use on drones or cranes
- Simplified Power and Transmission: Support for PoE+ via the LAN port
- Recording Reliability: Dual SD slot (UHS-I/UHS-II) for recording — MP4 and MOV H.264/H.265/HEVC formats in 4K
- Advanced Light Handling: Dual Native ISO and wide dynamic range — excellent performance in low light
Technical Specifications
- Image Sensor: 4/3" MOS with approximately 10.30 effective megapixels
- Lens Mount: Micro 4/3"
- Dynamic Range: 13 stops with V-Log L mode
- Video Formats: MP4 MOV recording (H.264/MPEG-4 AVC and H.265/HEVC)
- Video Outputs: 3G-SDI output and HDMI Type A connection
- I/O Connectivity: LAN (PoE+), USB-C, TC IN/OUT, Genlock IN, headphone jack, microphone (3.5 mm)
- Power Supply: Via optional 7.28V Li-ion battery pack (AG-VBR59, AG-VBR89, and AG-VBR118), AC adapter (12V/3A), or PoE+ (IEEE802.3at)
- Recording Media: Dual SD slot for SD, SDHC, and SDXC cards (UHS-I/II, V90 supported)
- Dimensions (W x H x D): approx. 93.0 mm x 93.0 mm x 78.0 mm
- Weight: approx. 545 g (body only, without lens)
- Supported IP Protocols: NDI HX2, RTMPS, SRT, RTP/RTSP
- Color Compatibility: Color profile compatible with the AW-UE160 camera for uniformity in multi-camera setups
What Professional Applications is the AW-UB10 Camera Suitable For?
The AW-UB10 is a versatile box camera ideal for broadcast applications, live-streaming, and cinematic style production.
Its compact and lightweight design makes it perfect for installation on equipment requiring a small footprint: stabilizers, drones, cranes, as well as for multi-camera configurations in restricted environments such as studios or conference halls.
How does the AW-UB10 Compare to the AW-UB50?
The AW-UB10 is positioned as a versatile 4K production camera in a box format, offering an excellent compromise between performance and compactness, particularly compared to its larger counterpart
Information
| Warranty | Panasonic warranty |
| Delivery | Worldwide delivery possibilities |
