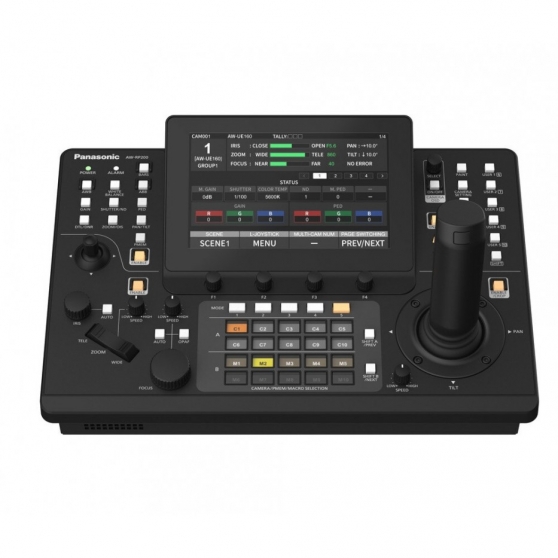

Panasonic AW-RP200 - Next-Generation Remote Camera Controller - Dual Joysticks - Macros
New product

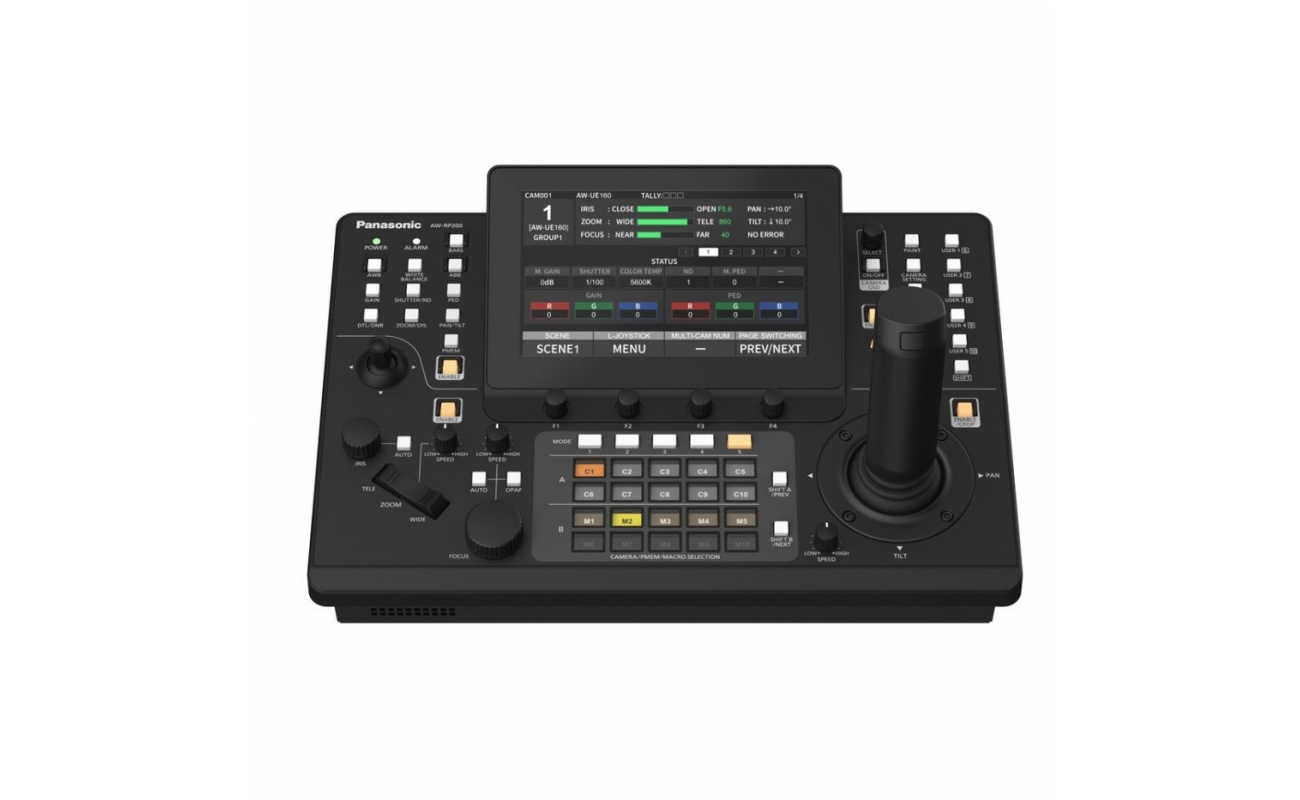

The Panasonic AW-RP200 is the next-generation remote pan-tilt camera controller designed for the most demanding multi-camera productions.
Featuring joysticks and Panasonic's first-ever macro functionality, it offers outstanding precision and unparalleled operational efficiency, reducing setup time and personnel needs.
It allows IP management of up to 200 pan-tilt cameras (including the AW-UE150A and UE160), automating complex sequences with a single touch.
Highlights of the AW-RP200GJ
- Dual Joysticks : Right (Pan/Tilt/Zoom/Focus control) Left (control of multiple PTZ cameras + other functions)
- Macro Automation : Complex sequences (multi-cam control, actions via presets, with a single touch)
- 20 Customizable LCD Buttons : Instant access to camera selection, macros, and presets
- Large-Scale Multi-Camera Control : Management of up to 200 PTZ cameras via IP and 3 via RS-422
- 7" Touchscreen : Camera status, monitoring, WFM (Waveform Monitor), Vectorscope
- Web Configuration : Interface for centralized camera configuration — batch IP address assignment
- Advanced Connectivity (IP/SDI) : Supports Full HD video input via NDI and SRT over LAN, in addition to 3G-SDI I/O
- Integration and Compatibility : Seamless integration with the Panasonic ecosystem — AW-UE150A and **AW-UE160**
Technical Specifications of the AW-RP200 Control Panel
- Number of Connectable Cameras (IP) : 200 via IP network
- Number of Connectable Cameras (Serial) : 3 via RS-422
- Power Supply : DC 12 V or PoE++ (IEEE802.3pt standard DC 42 V to 57 V)
- Power Connector : DC 12 V IN, XLR 4-pin
- Main Screen : 7" GUI Touchscreen (WVGA 800x480)
- PTZ Controls : Dual Joysticks for Pan/Tilt/Zoom/Focus, with assignable toggle and button on the right joystick
- Camera Selection Buttons : 20 (Multi-select)
- Preset Memory : 100 presets per camera
- Tracing Memory : Maximum of 10 settings per camera
- Macro Memory : 100
- Video Input : 3G SDI IN (x1), or NDI High Bandwidth, or SRT (via LAN)
- Video Output : 3G SDI OUT (x1)
- I/O Connectors : LAN (RJ-45), RS-422 x3 (RJ-45), GPIO (DSUB 25-pin x2)
- USB : USB Type-A/Type-C (USB 2.0)
- Weight : approx. 3.5 kg
- Dimensions (W x H x D) : 36.4 cm x 17.8 cm x 24.5 cm
Information
| Warranty | Panasonic warranty |
| Delivery | Worldwide delivery possibilities |
Download Brochure, Manual
